Time Span Events

Hello World Example for Angular

Time span events can be added to your Angular charting applications quickly and easily. With a properly formatted data source, your Angular apps can offer the powerful visual analysis capabilities of the ChartIQ Time Span Events module.

In this tutorial

You will clone the chartiq-angular-app GitHub project and customize the HelloWorldComponent to automatically display time span events when a basic chart loads.

Before you begin

This tutorial requires version 8.1.0 or later of the ChartIQ library.

The tutorial relies on concepts covered in the Creating a Data Source tutorial and Implementation tutorial. Please familiarize yourself with the prerequisite material before proceeding.

chartiq-angular-app

The chartiq-angular-app project on GitHub is a toolkit of Angular components. The components create everything from a basic chart, HelloWorldComponent, to a chart with a full-featured user interface, AdvancedChartComponent, to an active trader workstation, ActiveTraderComponent.

Getting started

Access the chartiq-angular-app project.

Follow the instructions in the "Getting started" section of the README to set up the project on your local system.

After you have installed and compiled the project, open your web browser to:

http://localhost:4200/

You should see a list of the toolkit's charting components. The list is created by the RouteListComponent.

Select HelloWorldComponent.

A basic time series chart should appear:

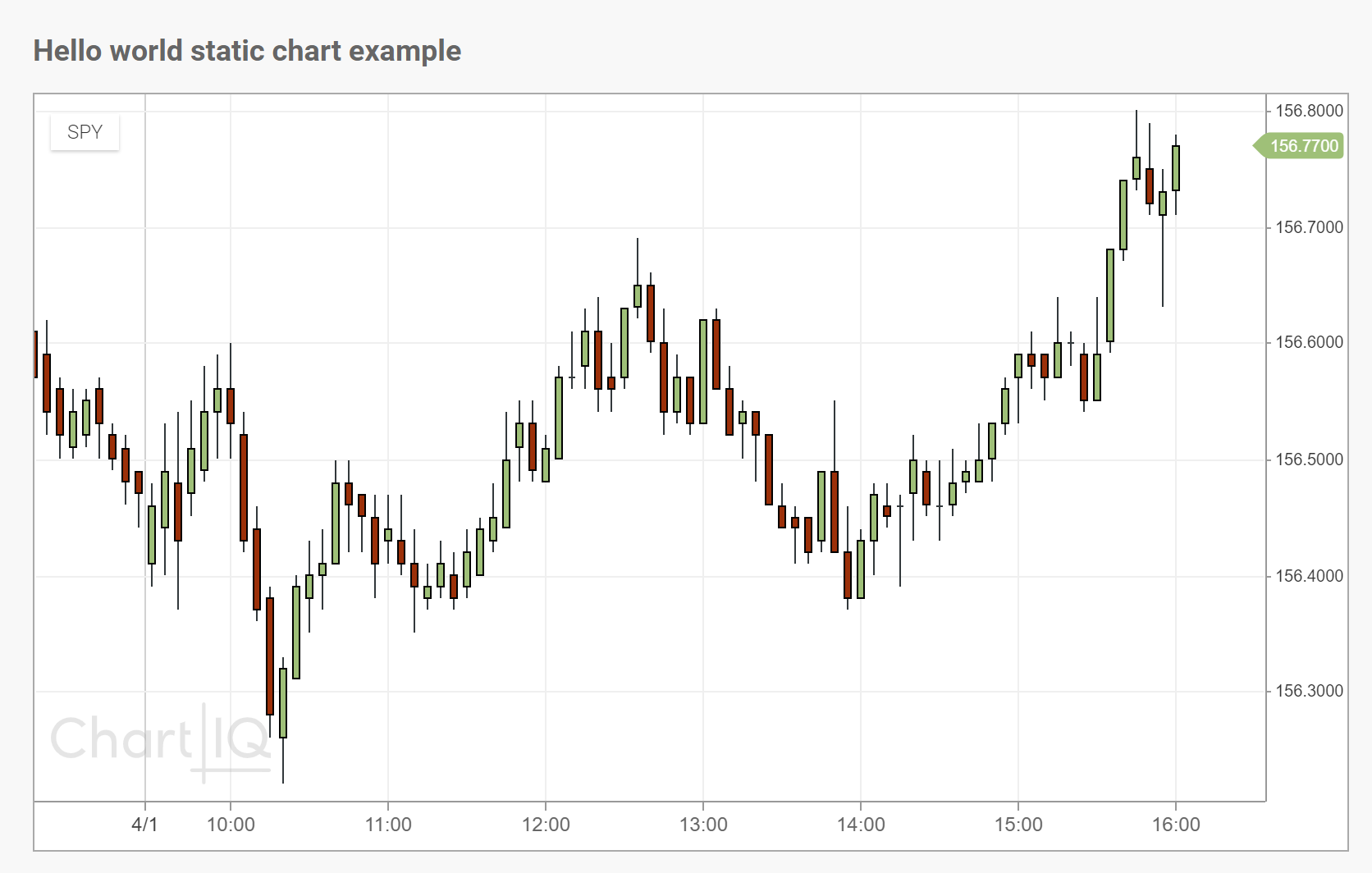

Basic chart with no user interface Figure. Basic chart with no user interface.

HelloWorldComponent

The HelloWorldComponent creates a time series chart with no user interface. The time series data comes from a static data source built into the component.

The component's source code is located in the src/app/chartiq-hello-world folder of the project:
HelloWorldComponent source files

Open the folder in your code editor. Let's look at the component source files.

hello-world.component.html

The HTML template file contains the markup for the chart:

<div style="margin: 20px;">
<h2>
    Hello world static chart example
</h2>
<div
    #chartContainer
    class="chartContainer"
    style="
        width: 800px;
        height: 460px;
        position: relative;
        border: solid 1px #aaa
    "></div>
</div>

The chart is created in the inner div. Note the #chartContainer template reference variable, which is used in hello-world.component.ts to provide a reference to the DOM node.

hello-world-component.scss

The style sheet file imports stx-chart.css, the basic style sheet required by all ChartIQ charts:

@import '~chartiq/css/stx-chart.css'; // Chart API

hello-world-component.ts

The component definition file creates the component and provides the static data source, masterData, for the chart.

The majority of our work will be done in this file. Here's our starting point:

import { Component, ViewChild, ElementRef, AfterViewInit, ViewEncapsulation } from '@angular/core';

import { CIQ } from 'chartiq/js/chartiq';

/**
 * The Hello World component creates a basic chart from a built-in static data source. The chart
 * does not have a user interface.
 */
@Component({
    selector: 'cq-hello-world',
    templateUrl: './hello-world.component.html',
    styleUrls: ['./hello-world.component.scss'],
    encapsulation: ViewEncapsulation.None
})
export class HelloWorldComponent implements AfterViewInit {
    @ViewChild('chartContainer', { static: true }) chartContainer: ElementRef;

    constructor() {}

    ngAfterViewInit() {
        const container = this.chartContainer.nativeElement;

        const stx = new CIQ.ChartEngine({ container });

        stx.loadChart('SPY', {
            masterData: this.getMasterData(),
            periodicity: {
                period: 1,
                interval: 5,
                timeUnit: 'minute',
            },
        });
    }

    getMasterData() {
        const masterData = [
            {Date:"20200331144000000",Open:156.64,High:156.66,Low:156.57,Close:156.59,Volume:932912},
            {Date:"20200331145000000",Open:156.58,High:156.62,Low:156.57,Close:156.61,Volume:700952},
            {Date:"20200331145500000",Open:156.59,High:156.60,Low:156.55,Close:156.58,Volume:1084428},
            {Date:"20200331150000000",Open:156.57,High:156.58,Low:156.53,Close:156.55,Volume:916684},
            {Date:"20200331150500000",Open:156.54,High:156.57,Low:156.52,Close:156.55,Volume:1360390},
            {Date:"20200331151000000",Open:156.56,High:156.60,Low:156.54,Close:156.58,Volume:2037170},
            {Date:"20200331151500000",Open:156.55,High:156.62,Low:156.54,Close:156.60,Volume:4280833},
            {Date:"20200331152000000",Open:156.61,High:156.62,Low:156.54,Close:156.57,Volume:3348274},
            {Date:"20200331152500000",Open:156.59,High:156.62,Low:156.52,Close:156.54,Volume:932912},
            {Date:"20200331153000000",Open:156.56,High:156.57,Low:156.50,Close:156.52,Volume:700952},
            {Date:"20200331153500000",Open:156.51,High:156.56,Low:156.50,Close:156.54,Volume:1084428},
            {Date:"20200331154000000",Open:156.52,High:156.56,Low:156.51,Close:156.55,Volume:916684},
            {Date:"20200331154500000",Open:156.56,High:156.57,Low:156.50,Close:156.53,Volume:1360390},
            {Date:"20200331155000000",Open:156.52,High:156.53,Low:156.49,Close:156.50,Volume:2037170},
            {Date:"20200331155500000",Open:156.51,High:156.52,Low:156.46,Close:156.48,Volume:4280833},
            {Date:"20200331160000000",Open:156.49,High:156.48,Low:156.44,Close:156.47,Volume:3348274},
            {Date:"20200401093000000",Open:156.41,High:156.48,Low:156.39,Close:156.46,Volume:1869466},
            {Date:"20200401093500000",Open:156.44,High:156.53,Low:156.40,Close:156.49,Volume:2937883},
            {Date:"20200401094000000",Open:156.48,High:156.54,Low:156.37,Close:156.43,Volume:2277682},
            {Date:"20200401094500000",Open:156.47,High:156.55,Low:156.45,Close:156.51,Volume:1714687},
            {Date:"20200401095000000",Open:156.49,High:156.58,Low:156.48,Close:156.54,Volume:1902583},
            {Date:"20200401095500000",Open:156.54,High:156.59,Low:156.50,Close:156.56,Volume:1325148},
            {Date:"20200401100000000",Open:156.56,High:156.60,Low:156.50,Close:156.53,Volume:2005588},
            {Date:"20200401100500000",Open:156.52,High:156.54,Low:156.42,Close:156.43,Volume:1277880},
            {Date:"20200401101000000",Open:156.44,High:156.46,Low:156.36,Close:156.37,Volume:1158301},
            {Date:"20200401101500000",Open:156.38,High:156.39,Low:156.26,Close:156.28,Volume:1987415},
            {Date:"20200401102000000",Open:156.26,High:156.33,Low:156.22,Close:156.32,Volume:1512742},
            {Date:"20200401102500000",Open:156.31,High:156.40,Low:156.31,Close:156.39,Volume:871592},
            {Date:"20200401103000000",Open:156.38,High:156.43,Low:156.35,Close:156.40,Volume:1132109},
            {Date:"20200401103500000",Open:156.40,High:156.44,Low:156.37,Close:156.41,Volume:725521},
            {Date:"20200401104000000",Open:156.41,High:156.50,Low:156.41,Close:156.48,Volume:704072},
            {Date:"20200401104500000",Open:156.48,High:156.50,Low:156.42,Close:156.46,Volume:844084},
            {Date:"20200401105000000",Open:156.47,High:156.47,Low:156.42,Close:156.45,Volume:392122},
            {Date:"20200401105500000",Open:156.45,High:156.47,Low:156.38,Close:156.41,Volume:544729},
            {Date:"20200401110000000",Open:156.43,High:156.47,Low:156.41,Close:156.44,Volume:660383},
            {Date:"20200401110500000",Open:156.43,High:156.47,Low:156.40,Close:156.41,Volume:640177},
            {Date:"20200401111000000",Open:156.41,High:156.44,Low:156.35,Close:156.39,Volume:845668},
            {Date:"20200401111500000",Open:156.38,High:156.41,Low:156.37,Close:156.39,Volume:503347},
            {Date:"20200401112000000",Open:156.39,High:156.43,Low:156.38,Close:156.41,Volume:360929},
            {Date:"20200401112500000",Open:156.40,High:156.42,Low:156.37,Close:156.38,Volume:749554},
            {Date:"20200401113000000",Open:156.39,High:156.44,Low:156.38,Close:156.42,Volume:723857},
            {Date:"20200401113500000",Open:156.40,High:156.45,Low:156.40,Close:156.44,Volume:455561},
            {Date:"20200401114000000",Open:156.43,High:156.48,Low:156.42,Close:156.45,Volume:670704},
            {Date:"20200401114500000",Open:156.44,High:156.54,Low:156.44,Close:156.50,Volume:827725},
            {Date:"20200401115000000",Open:156.51,High:156.55,Low:156.48,Close:156.53,Volume:828780},
            {Date:"20200401115500000",Open:156.53,High:156.55,Low:156.48,Close:156.49,Volume:687357},
            {Date:"20200401120000000",Open:156.48,High:156.52,Low:156.48,Close:156.51,Volume:343617},
            {Date:"20200401120500000",Open:156.50,High:156.58,Low:156.50,Close:156.57,Volume:444181},
            {Date:"20200401121000000",Open:156.57,High:156.61,Low:156.56,Close:156.57,Volume:932850},
            {Date:"20200401121500000",Open:156.58,High:156.63,Low:156.56,Close:156.61,Volume:622879},
            {Date:"20200401122000000",Open:156.61,High:156.64,Low:156.54,Close:156.56,Volume:417197},
            {Date:"20200401122500000",Open:156.57,High:156.60,Low:156.54,Close:156.56,Volume:524792},
            {Date:"20200401123000000",Open:156.57,High:156.63,Low:156.56,Close:156.63,Volume:547832},
            {Date:"20200401123500000",Open:156.63,High:156.69,Low:156.62,Close:156.65,Volume:1033940},
            {Date:"20200401124000000",Open:156.65,High:156.66,Low:156.59,Close:156.60,Volume:666020},
            {Date:"20200401124500000",Open:156.60,High:156.63,Low:156.52,Close:156.54,Volume:886571},
            {Date:"20200401125000000",Open:156.54,High:156.59,Low:156.53,Close:156.57,Volume:409824},
            {Date:"20200401125500000",Open:156.57,High:156.57,Low:156.52,Close:156.53,Volume:490971},
            {Date:"20200401130000000",Open:156.53,High:156.62,Low:156.53,Close:156.62,Volume:618202},
            {Date:"20200401130500000",Open:156.62,High:156.63,Low:156.56,Close:156.56,Volume:232977},
            {Date:"20200401131000000",Open:156.56,High:156.58,Low:156.52,Close:156.52,Volume:569834},
            {Date:"20200401131500000",Open:156.53,High:156.55,Low:156.50,Close:156.54,Volume:526717},
            {Date:"20200401132000000",Open:156.54,High:156.54,Low:156.48,Close:156.52,Volume:587983},
            {Date:"20200401132500000",Open:156.52,High:156.52,Low:156.46,Close:156.46,Volume:683988},
            {Date:"20200401133000000",Open:156.46,High:156.48,Low:156.44,Close:156.44,Volume:505235},
            {Date:"20200401133500000",Open:156.45,High:156.46,Low:156.41,Close:156.44,Volume:760274},
            {Date:"20200401134000000",Open:156.45,High:156.45,Low:156.41,Close:156.42,Volume:428196},
            {Date:"20200401134500000",Open:156.43,High:156.49,Low:156.42,Close:156.49,Volume:372145},
            {Date:"20200401135000000",Open:156.49,High:156.55,Low:156.42,Close:156.42,Volume:493463},
            {Date:"20200401135500000",Open:156.42,High:156.46,Low:156.37,Close:156.38,Volume:763911},
            {Date:"20200401140000000",Open:156.38,High:156.44,Low:156.38,Close:156.43,Volume:478714},
            {Date:"20200401140500000",Open:156.43,High:156.48,Low:156.40,Close:156.47,Volume:347221},
            {Date:"20200401141000000",Open:156.46,High:156.48,Low:156.44,Close:156.45,Volume:527388},
            {Date:"20200401141500000",Open:156.46,High:156.47,Low:156.39,Close:156.46,Volume:1254489},
            {Date:"20200401142000000",Open:156.47,High:156.52,Low:156.43,Close:156.50,Volume:588877},
            {Date:"20200401142500000",Open:156.49,High:156.50,Low:156.45,Close:156.46,Volume:391738},
            {Date:"20200401143000000",Open:156.46,High:156.50,Low:156.43,Close:156.46,Volume:835468},
            {Date:"20200401143500000",Open:156.46,High:156.51,Low:156.45,Close:156.48,Volume:465308},
            {Date:"20200401144000000",Open:156.48,High:156.50,Low:156.47,Close:156.49,Volume:389872},
            {Date:"20200401144500000",Open:156.48,High:156.53,Low:156.48,Close:156.50,Volume:530820},
            {Date:"20200401145000000",Open:156.50,High:156.53,Low:156.48,Close:156.53,Volume:554269},
            {Date:"20200401145500000",Open:156.53,High:156.57,Low:156.52,Close:156.56,Volume:622473},
            {Date:"20200401150000000",Open:156.57,High:156.59,Low:156.53,Close:156.59,Volume:593592},
            {Date:"20200401150500000",Open:156.59,High:156.61,Low:156.56,Close:156.58,Volume:1089712},
            {Date:"20200401151000000",Open:156.59,High:156.59,Low:156.55,Close:156.57,Volume:634702},
            {Date:"20200401151500000",Open:156.57,High:156.64,Low:156.57,Close:156.60,Volume:1206417},
            {Date:"20200401152000000",Open:156.60,High:156.61,Low:156.58,Close:156.60,Volume:641636},
            {Date:"20200401152500000",Open:156.59,High:156.60,Low:156.54,Close:156.55,Volume:873698},
            {Date:"20200401153000000",Open:156.55,High:156.64,Low:156.55,Close:156.59,Volume:1318720},
            {Date:"20200401153500000",Open:156.60,High:156.68,Low:156.59,Close:156.68,Volume:1520610},
            {Date:"20200401154000000",Open:156.68,High:156.74,Low:156.67,Close:156.74,Volume:1678678},
            {Date:"20200401154500000",Open:156.74,High:156.80,Low:156.73,Close:156.76,Volume:2854531},
            {Date:"20200401155000000",Open:156.75,High:156.79,Low:156.71,Close:156.72,Volume:2984534},
            {Date:"20200401155500000",Open:156.71,High:156.75,Low:156.63,Close:156.73,Volume:7105595},
            {Date:"20200401160000000",Open:156.73,High:156.78,Low:156.71,Close:156.77,Volume:3863507}
        ];
        return masterData;
    }
}

Install the Time Span Events plug-in

The first thing we need to do is make the Time Span Events plug-in available to the component.

Add the following import to hello-world.component.ts:

import "chartiq/plugins/timespanevent/timespanevent";

The plug-in import must come after the import of the CIQ namespace; for example:

import { CIQ } from 'chartiq/js/chartiq';
import "chartiq/plugins/timespanevent/timespanevent";

The Time Span Events plug-in relies on library routines in the advanced.js file to create the visual markers that depict time span events; and so, we need to also add the following import to hello-world.component.ts:

import "chartiq/js/advanced";

The import must come before the import of the Time Span Events plug-in, for example:

import { CIQ } from 'chartiq/js/chartiq';
import "chartiq/js/advanced";
import "chartiq/plugins/timespanevent/timespanevent";

See the Angular section of the Implementation tutorial for detailed information about installing the Time Span Events plug-in.

Instantiate the Time Span Events panel

Now we can create an instance of the Time Span Events panel. Time span event markers are displayed in the panel.

Add the following to the ngAfterViewInit function of hello-world.component.ts:

new CIQ["TimeSpanEventPanel"]({
    stx: stx,
    showTooltip: true,
    infoPanel: {
        spanEvent: "main",
        durationEvent: "main",
        singleEvent: "main"
    }
});

Note: TimeSpanEventPanel must be referenced from the CIQ namespace using bracket notation rather than dot notation to prevent TypeScript type checking from throwing a compilation error.

The CIQ.TimeSpanEventPanel constructor function requires a reference to the chart engine, stx; and so, you must add the function call after the instantiation of the chart engine.

For example, here's ngAfterViewInit with the Time Span Events panel instantiation:

ngAfterViewInit() {
    const container = this.chartContainer.nativeElement;

    const stx = new CIQ.ChartEngine({ container });

    new CIQ["TimeSpanEventPanel"]({
        stx: stx,
        showTooltip: true,
        infoPanel: {
            spanEvent: "main",
            durationEvent: "main",
            singleEvent: "main"
        }
    });

    stx.loadChart('SPY', {
        masterData: this.getMasterData(),
        periodicity: {
            period: 1,
            interval: 5,
            timeUnit: 'minute',
        },
    });

}

The showTooltip and infoPanel parameters configure display aspects of the time span event markers. See CIQ.TimeSpanEventPanel for more information.

Create the data

Next, we need to create data objects for our time span events and for the swim lanes in which the events appear. The data objects are based on the chart's masterData array.

See the Creating a Data Source tutorial for the details on creating time span event objects.

Event data objects

We'll create events for each of the three time span event types: spanEvent, singleEvent, and durationEvent.

Add the following function to hello-world.component.ts:

getTseData(eventType) {

    // Span events.
    const businessEvents = [
        {
            label: "Business",
            spanLabel: "Product Demo",
            startDate: "2020-04-01T09:30:00",
            endDate: "2020-04-01T11:00:00",
            bgColor: "#00f",
            headline: "New Product",
            story: "Presentation to media."
        },
        {
            label: "Business",
            spanLabel: "Board Meeting",
            startDate: "2020-04-01T12:00:00",
            endDate: "2020-04-01T16:00:00",
            bgColor: "#f90",
            textColor: "#000"
        },
    ];

    // Single events.
    const filingEvents = [
        {
            label: "Filing",
            startDate: "2020-04-01T11:30",
            markerShape: "square",
            bgColor: "#a09",
            headline: "SEC Filing",
            story: "10K"
        },
        {
            label: "Filing",
            startDate: "2020-04-01T14:35:00",
            markerShape: "square",
            bgColor: "#0a0",
            headline: "SEC Filing",
            story: "10Q"
        }
    ];

    // Duration events.
    const orderEvents = [
        {
            label: "Order",
            startDate: "2020-04-01T10:00",
            endDate: "2020-04-01T11:45",
            markerShape: "circle",
            category: "trade",
            subChildren: [
                {
                    date: new Date("2020-04-01T10:10:00"),
                    price: 156.46,
                    headline: "Trade Execution",
                    story: "Price: 156.46"
                },
                {
                    date: new Date("2020-04-01T10:40:00"),
                    price: 156.50,
                    headline: "Trade Execution",
                    story: "Price: 156.50"
                },
                {
                    date: new Date("2020-04-01T11:20:00"),
                    price: 156.43,
                    headline: "Trade Execution",
                    story: "Price: 156.43"
                },
                {
                    date: new Date("2020-04-01T11:45:00"),
                    price: 156.54,
                    headline: "Trade Execution",
                    story: "Price: 156.54"
                }
            ],
            headline: "Trade Start",
            story: new Date("2020-04-01T10:00"),
            bgColor: "#aa0"
        },
        {
            label: "Order",
            startDate: "2020-04-01T13:00",
            endDate: "2020-04-01T15:25",
            markerShape: "circle",
            category: "trade",
            subChildren: [
                {
                    date: new Date("2020-04-01T13:50:00"),
                    price: 156.55,
                    headline: "Trade Execution",
                    story: "Price: 156.55"
                },
                {
                    date: new Date("2020-04-01T14:25:00"),
                    price: 156.45,
                    headline: "Trade Execution",
                    story: "Price: 156.45"
                },
                {
                    date: new Date("2020-04-01T15:25:00"),
                    price: 156.54,
                    headline: "Trade Execution",
                    story: "Price: 156.54"
                }
            ],
            headline: "Trade Start",
            story: new Date("2020-04-01T10:40"),
            bgColor: "#0af",
            isActive: true
        }
    ];

}

The function will ultimately return the data for one of the event types ("Business", "Filing", or "Order"). The eventType parameter will be used to specify the type of event.

All the dates and prices of the event objects correspond to elements in masterData. You can locate the data elements from the date and time values of the events.

See the Creating a Data Source tutorial for information about the other object properties.

Swim lane data objects

Next, we'll create swim lane data objects that contain and identify the time span events.

Add the following to the getTseData function in hello-world.component.ts after the array declarations:

const business = {
    type: "Business",
    events: businessEvents,
	spanType: "spanEvent"
}

const filing = {
    type: "Filing",
    events: filingEvents,
	spanType: "singleEvent"
}

const order = {
    type: "Order",
    events: orderEvents,
    spanType: "durationEvent"
}

switch (eventType.toLowerCase()) {
    case "business":
        return business;
    case "filing":
        return filing;
    case "order":
        return order;
}

The switch statement evaluates the argument passed to the getTseData function and returns the appropriate swim lane data object.

Display the events

The CIQ.TimeSpanEventPanel#showTimeSpanEvent function takes a swim lane object as an argument and displays the events contained in the object's events array in a swim lane of the Time Span Events panel.

Add the following to the bottom of the ngAfterViewInit function:

stx["timeSpanEventPanel"].showTimeSpanEvent(this.getTseData("Filing"));
stx["timeSpanEventPanel"].showTimeSpanEvent(this.getTseData("Business"));
stx["timeSpanEventPanel"].showTimeSpanEvent(this.getTseData("Order"));

Note: The timeSpanEventPanel property must be referenced from stx using bracket notation rather than dot notation to prevent TypeScript type checking from throwing a compilation error.

The chart engine, stx, acquired a reference to the Time Span Events panel when we instantiated the panel (see Instantiate the Time Span Events panel above). So, we can reference the panel and call the showTimeSpanEvent function, passing our swim lane objects, which define our custom time span events.

The completed file

Here's our completed hello-world.component.ts file:

import { Component, ViewChild, ElementRef, AfterViewInit, ViewEncapsulation } from '@angular/core';

import { CIQ } from 'chartiq/js/chartiq';
import "chartiq/js/advanced";
import "chartiq/plugins/timespanevent/timespanevent";

/**
 * The Hello World component creates a basic chart from a built-in static data source. The chart
 * does not have a user interface.
 */
@Component({
    selector: 'cq-hello-world',
    templateUrl: './hello-world.component.html',
    styleUrls: ['./hello-world.component.scss'],
    encapsulation: ViewEncapsulation.None
})
export class HelloWorldComponent implements AfterViewInit {
    @ViewChild('chartContainer', { static: true }) chartContainer: ElementRef;

    constructor() {}

    ngAfterViewInit() {
        const container = this.chartContainer.nativeElement;

        const stx = new CIQ.ChartEngine({ container });

        new CIQ["TimeSpanEventPanel"]({
            stx: stx,
            showTooltip: true,
            infoPanel: {
                spanEvent: "main",
                durationEvent: "main",
                singleEvent: "main"
            }
        });

        stx.loadChart('SPY', {
            masterData: this.getMasterData(),
            periodicity: {
                period: 1,
                interval: 5,
                timeUnit: 'minute',
            },
        });

        stx["timeSpanEventPanel"].showTimeSpanEvent(this.getTseData("Filing"));
        stx["timeSpanEventPanel"].showTimeSpanEvent(this.getTseData("Business"));
        stx["timeSpanEventPanel"].showTimeSpanEvent(this.getTseData("Order"));

    }

    /**
     * Gets the data for a swim lane of time span events.
     *
     * @param eventType Specifies the type of time span event. Must match the `type` property of
     *      a swim lane data object.
     * @return A swim lane data object, which contains an array of time span events.
     */
    getTseData(eventType) {

        // Span events.
        const businessEvents = [
            {
                label: "Business",
                spanLabel: "Product Demo",
                startDate: "2020-04-01T09:30:00",
                endDate: "2020-04-01T11:00:00",
                bgColor: "#00f",
                headline: "New Product",
                story: "Presentation to media."
            },
            {
                label: "Business",
                spanLabel: "Board Meeting",
                startDate: "2020-04-01T12:00:00",
                endDate: "2020-04-01T16:00:00",
                bgColor: "#f90",
                textColor: "#000"
            },
        ];

        // Single events.
        const filingEvents = [
            {
                label: "Filing",
                startDate: "2020-04-01T11:30",
                markerShape: "square",
                bgColor: "#a09",
                headline: "SEC Filing",
                story: "10K"
            },
            {
                label: "Filing",
                startDate: "2020-04-01T14:35:00",
                markerShape: "square",
                bgColor: "#0a0",
                headline: "SEC Filing",
                story: "10Q"
            }
        ];

        // Duration events.
        const orderEvents = [
            {
                label: "Order",
                startDate: "2020-04-01T10:00",
                endDate: "2020-04-01T11:45",
                markerShape: "circle",
                category: "trade",
                subChildren: [
                    {
                        date: new Date("2020-04-01T10:10:00"),
                        price: 156.46,
                        headline: "Trade Execution",
                        story: "Price: 156.46"
                    },
                    {
                        date: new Date("2020-04-01T10:40:00"),
                        price: 156.50,
                        headline: "Trade Execution",
                        story: "Price: 156.50"
                    },
                    {
                        date: new Date("2020-04-01T11:20:00"),
                        price: 156.43,
                        headline: "Trade Execution",
                        story: "Price: 156.43"
                    },
                    {
                        date: new Date("2020-04-01T11:45:00"),
                        price: 156.54,
                        headline: "Trade Execution",
                        story: "Price: 156.54"
                    }
                ],
                headline: "Trade Start",
                story: new Date("2020-04-01T10:00"),
                bgColor: "#aa0"
            },
            {
                label: "Order",
                startDate: "2020-04-01T13:00",
                endDate: "2020-04-01T15:25",
                markerShape: "circle",
                category: "trade",
                subChildren: [
                    {
                        date: new Date("2020-04-01T13:50:00"),
                        price: 156.55,
                        headline: "Trade Execution",
                        story: "Price: 156.55"
                    },
                    {
                        date: new Date("2020-04-01T14:25:00"),
                        price: 156.45,
                        headline: "Trade Execution",
                        story: "Price: 156.45"
                    },
                    {
                        date: new Date("2020-04-01T15:25:00"),
                        price: 156.54,
                        headline: "Trade Execution",
                        story: "Price: 156.54"
                    }
                ],
                headline: "Trade Start",
                story: new Date("2020-04-01T10:40"),
                bgColor: "#0af",
                isActive: true
            }
        ];

        // Swim lane objects.

        const business = {
            type: "Business",
            events: businessEvents,
            spanType: "spanEvent"
        }

        const filing = {
            type: "Filing",
            events: filingEvents,
            spanType: "singleEvent"
        }

        const order = {
            type: "Order",
            events: orderEvents,
            spanType: "durationEvent"
        }

        switch (eventType.toLowerCase()) {
            case "business":
                return business;
            case "filing":
                return filing;
            case "order":
                return order;
        }

    }

    getMasterData() {
        const masterData = [
            {Date:"20200331144000000",Open:156.64,High:156.66,Low:156.57,Close:156.59,Volume:932912},
            {Date:"20200331145000000",Open:156.58,High:156.62,Low:156.57,Close:156.61,Volume:700952},
            {Date:"20200331145500000",Open:156.59,High:156.60,Low:156.55,Close:156.58,Volume:1084428},
            {Date:"20200331150000000",Open:156.57,High:156.58,Low:156.53,Close:156.55,Volume:916684},
            {Date:"20200331150500000",Open:156.54,High:156.57,Low:156.52,Close:156.55,Volume:1360390},
            {Date:"20200331151000000",Open:156.56,High:156.60,Low:156.54,Close:156.58,Volume:2037170},
            {Date:"20200331151500000",Open:156.55,High:156.62,Low:156.54,Close:156.60,Volume:4280833},
            {Date:"20200331152000000",Open:156.61,High:156.62,Low:156.54,Close:156.57,Volume:3348274},
            {Date:"20200331152500000",Open:156.59,High:156.62,Low:156.52,Close:156.54,Volume:932912},
            {Date:"20200331153000000",Open:156.56,High:156.57,Low:156.50,Close:156.52,Volume:700952},
            {Date:"20200331153500000",Open:156.51,High:156.56,Low:156.50,Close:156.54,Volume:1084428},
            {Date:"20200331154000000",Open:156.52,High:156.56,Low:156.51,Close:156.55,Volume:916684},
            {Date:"20200331154500000",Open:156.56,High:156.57,Low:156.50,Close:156.53,Volume:1360390},
            {Date:"20200331155000000",Open:156.52,High:156.53,Low:156.49,Close:156.50,Volume:2037170},
            {Date:"20200331155500000",Open:156.51,High:156.52,Low:156.46,Close:156.48,Volume:4280833},
            {Date:"20200331160000000",Open:156.49,High:156.48,Low:156.44,Close:156.47,Volume:3348274},
            {Date:"20200401093000000",Open:156.41,High:156.48,Low:156.39,Close:156.46,Volume:1869466},
            {Date:"20200401093500000",Open:156.44,High:156.53,Low:156.40,Close:156.49,Volume:2937883},
            {Date:"20200401094000000",Open:156.48,High:156.54,Low:156.37,Close:156.43,Volume:2277682},
            {Date:"20200401094500000",Open:156.47,High:156.55,Low:156.45,Close:156.51,Volume:1714687},
            {Date:"20200401095000000",Open:156.49,High:156.58,Low:156.48,Close:156.54,Volume:1902583},
            {Date:"20200401095500000",Open:156.54,High:156.59,Low:156.50,Close:156.56,Volume:1325148},
            {Date:"20200401100000000",Open:156.56,High:156.60,Low:156.50,Close:156.53,Volume:2005588},
            {Date:"20200401100500000",Open:156.52,High:156.54,Low:156.42,Close:156.43,Volume:1277880},
            {Date:"20200401101000000",Open:156.44,High:156.46,Low:156.36,Close:156.37,Volume:1158301},
            {Date:"20200401101500000",Open:156.38,High:156.39,Low:156.26,Close:156.28,Volume:1987415},
            {Date:"20200401102000000",Open:156.26,High:156.33,Low:156.22,Close:156.32,Volume:1512742},
            {Date:"20200401102500000",Open:156.31,High:156.40,Low:156.31,Close:156.39,Volume:871592},
            {Date:"20200401103000000",Open:156.38,High:156.43,Low:156.35,Close:156.40,Volume:1132109},
            {Date:"20200401103500000",Open:156.40,High:156.44,Low:156.37,Close:156.41,Volume:725521},
            {Date:"20200401104000000",Open:156.41,High:156.50,Low:156.41,Close:156.48,Volume:704072},
            {Date:"20200401104500000",Open:156.48,High:156.50,Low:156.42,Close:156.46,Volume:844084},
            {Date:"20200401105000000",Open:156.47,High:156.47,Low:156.42,Close:156.45,Volume:392122},
            {Date:"20200401105500000",Open:156.45,High:156.47,Low:156.38,Close:156.41,Volume:544729},
            {Date:"20200401110000000",Open:156.43,High:156.47,Low:156.41,Close:156.44,Volume:660383},
            {Date:"20200401110500000",Open:156.43,High:156.47,Low:156.40,Close:156.41,Volume:640177},
            {Date:"20200401111000000",Open:156.41,High:156.44,Low:156.35,Close:156.39,Volume:845668},
            {Date:"20200401111500000",Open:156.38,High:156.41,Low:156.37,Close:156.39,Volume:503347},
            {Date:"20200401112000000",Open:156.39,High:156.43,Low:156.38,Close:156.41,Volume:360929},
            {Date:"20200401112500000",Open:156.40,High:156.42,Low:156.37,Close:156.38,Volume:749554},
            {Date:"20200401113000000",Open:156.39,High:156.44,Low:156.38,Close:156.42,Volume:723857},
            {Date:"20200401113500000",Open:156.40,High:156.45,Low:156.40,Close:156.44,Volume:455561},
            {Date:"20200401114000000",Open:156.43,High:156.48,Low:156.42,Close:156.45,Volume:670704},
            {Date:"20200401114500000",Open:156.44,High:156.54,Low:156.44,Close:156.50,Volume:827725},
            {Date:"20200401115000000",Open:156.51,High:156.55,Low:156.48,Close:156.53,Volume:828780},
            {Date:"20200401115500000",Open:156.53,High:156.55,Low:156.48,Close:156.49,Volume:687357},
            {Date:"20200401120000000",Open:156.48,High:156.52,Low:156.48,Close:156.51,Volume:343617},
            {Date:"20200401120500000",Open:156.50,High:156.58,Low:156.50,Close:156.57,Volume:444181},
            {Date:"20200401121000000",Open:156.57,High:156.61,Low:156.56,Close:156.57,Volume:932850},
            {Date:"20200401121500000",Open:156.58,High:156.63,Low:156.56,Close:156.61,Volume:622879},
            {Date:"20200401122000000",Open:156.61,High:156.64,Low:156.54,Close:156.56,Volume:417197},
            {Date:"20200401122500000",Open:156.57,High:156.60,Low:156.54,Close:156.56,Volume:524792},
            {Date:"20200401123000000",Open:156.57,High:156.63,Low:156.56,Close:156.63,Volume:547832},
            {Date:"20200401123500000",Open:156.63,High:156.69,Low:156.62,Close:156.65,Volume:1033940},
            {Date:"20200401124000000",Open:156.65,High:156.66,Low:156.59,Close:156.60,Volume:666020},
            {Date:"20200401124500000",Open:156.60,High:156.63,Low:156.52,Close:156.54,Volume:886571},
            {Date:"20200401125000000",Open:156.54,High:156.59,Low:156.53,Close:156.57,Volume:409824},
            {Date:"20200401125500000",Open:156.57,High:156.57,Low:156.52,Close:156.53,Volume:490971},
            {Date:"20200401130000000",Open:156.53,High:156.62,Low:156.53,Close:156.62,Volume:618202},
            {Date:"20200401130500000",Open:156.62,High:156.63,Low:156.56,Close:156.56,Volume:232977},
            {Date:"20200401131000000",Open:156.56,High:156.58,Low:156.52,Close:156.52,Volume:569834},
            {Date:"20200401131500000",Open:156.53,High:156.55,Low:156.50,Close:156.54,Volume:526717},
            {Date:"20200401132000000",Open:156.54,High:156.54,Low:156.48,Close:156.52,Volume:587983},
            {Date:"20200401132500000",Open:156.52,High:156.52,Low:156.46,Close:156.46,Volume:683988},
            {Date:"20200401133000000",Open:156.46,High:156.48,Low:156.44,Close:156.44,Volume:505235},
            {Date:"20200401133500000",Open:156.45,High:156.46,Low:156.41,Close:156.44,Volume:760274},
            {Date:"20200401134000000",Open:156.45,High:156.45,Low:156.41,Close:156.42,Volume:428196},
            {Date:"20200401134500000",Open:156.43,High:156.49,Low:156.42,Close:156.49,Volume:372145},
            {Date:"20200401135000000",Open:156.49,High:156.55,Low:156.42,Close:156.42,Volume:493463},
            {Date:"20200401135500000",Open:156.42,High:156.46,Low:156.37,Close:156.38,Volume:763911},
            {Date:"20200401140000000",Open:156.38,High:156.44,Low:156.38,Close:156.43,Volume:478714},
            {Date:"20200401140500000",Open:156.43,High:156.48,Low:156.40,Close:156.47,Volume:347221},
            {Date:"20200401141000000",Open:156.46,High:156.48,Low:156.44,Close:156.45,Volume:527388},
            {Date:"20200401141500000",Open:156.46,High:156.47,Low:156.39,Close:156.46,Volume:1254489},
            {Date:"20200401142000000",Open:156.47,High:156.52,Low:156.43,Close:156.50,Volume:588877},
            {Date:"20200401142500000",Open:156.49,High:156.50,Low:156.45,Close:156.46,Volume:391738},
            {Date:"20200401143000000",Open:156.46,High:156.50,Low:156.43,Close:156.46,Volume:835468},
            {Date:"20200401143500000",Open:156.46,High:156.51,Low:156.45,Close:156.48,Volume:465308},
            {Date:"20200401144000000",Open:156.48,High:156.50,Low:156.47,Close:156.49,Volume:389872},
            {Date:"20200401144500000",Open:156.48,High:156.53,Low:156.48,Close:156.50,Volume:530820},
            {Date:"20200401145000000",Open:156.50,High:156.53,Low:156.48,Close:156.53,Volume:554269},
            {Date:"20200401145500000",Open:156.53,High:156.57,Low:156.52,Close:156.56,Volume:622473},
            {Date:"20200401150000000",Open:156.57,High:156.59,Low:156.53,Close:156.59,Volume:593592},
            {Date:"20200401150500000",Open:156.59,High:156.61,Low:156.56,Close:156.58,Volume:1089712},
            {Date:"20200401151000000",Open:156.59,High:156.59,Low:156.55,Close:156.57,Volume:634702},
            {Date:"20200401151500000",Open:156.57,High:156.64,Low:156.57,Close:156.60,Volume:1206417},
            {Date:"20200401152000000",Open:156.60,High:156.61,Low:156.58,Close:156.60,Volume:641636},
            {Date:"20200401152500000",Open:156.59,High:156.60,Low:156.54,Close:156.55,Volume:873698},
            {Date:"20200401153000000",Open:156.55,High:156.64,Low:156.55,Close:156.59,Volume:1318720},
            {Date:"20200401153500000",Open:156.60,High:156.68,Low:156.59,Close:156.68,Volume:1520610},
            {Date:"20200401154000000",Open:156.68,High:156.74,Low:156.67,Close:156.74,Volume:1678678},
            {Date:"20200401154500000",Open:156.74,High:156.80,Low:156.73,Close:156.76,Volume:2854531},
            {Date:"20200401155000000",Open:156.75,High:156.79,Low:156.71,Close:156.72,Volume:2984534},
            {Date:"20200401155500000",Open:156.71,High:156.75,Low:156.63,Close:156.73,Volume:7105595},
            {Date:"20200401160000000",Open:156.73,High:156.78,Low:156.71,Close:156.77,Volume:3863507}
        ];
        return masterData;
    }
}

Run it!

Start the project with npm start.

Load http://localhost:4200/hello-world in your web browser.

The chart now includes time span events. Time span event markers, including sub-event markers, are interactive. See the Introduction tutorial for information on interactivity.

Select any of the event markers. The sub-event markers (circles or squares) should appear along with some pop-up displays.

Here's the chart with several time span event markers and sub-event markers selected:

Basic chart with time span events and sub-events selected Figure. Basic chart with time span events and sub-events selected.

Style sheets

The timespanevent.css file (in the plugins/timespanevent folder of your library or the node_modules/chartiq/plugins/timespanevent folder of the project) styles the sub-event markers and pop-up display text.

The chartiq.css file (in the css folder of your library or the node_modules/chartiq/css folder of the project) positions the pop-up displays and styles their background.

The chartiq.css file must be imported after stx-chart.css, the main style sheet for charts, to create the correct cascade of styles.

The chartiq-base-styles.scss file in the src/app folder of the project imports chartiq.css and stx-chart.css; and so, HelloWorldComponent is able to access the files from there. Otherwise, you would have to add chartiq.css to hello-world.component.scss (after the import for stx-chart.css.)

Customization

Let's make some changes to the pop-up displays and sub-event markers by revising the CSS.

First, we'll increase the background opacity of the pop-up boxes and give them a dark border.

Open chartiq.css. Search for ".stx-performance-marker.stx-marker-expand".

You should find the following rule-set:

.stx-performance-marker.stx-marker-expand {
    background: rgba(255, 255, 255, 0.75);
    max-width: 200px;
    max-height: 200px;
    padding: 10px;
    opacity: 1;
    color: #000;
    display: block;
    border: 1px solid rgba(255, 255, 255, 0.3);
    overflow: auto;
    position: absolute;
}

Copy the rule-set to hello-world.component.scss.

Place it after the imported file, stx-chart.css, so that it succeeds the style sheet in the CSS cascade.

Note: You should never change any of the CSS files in your library. You can always override or modify a style by redefining it later in the CSS cascade. Also, keeping your CSS changes in a separate customizations file or folder makes upgrading the library easier.

Revise the rule-set as follows:

.stx-performance-marker.stx-marker-expand {
    background: rgba(255, 255, 255, 0.90);
    max-width: 200px;
    max-height: 200px;
    padding: 10px;
    opacity: 1;
    color: #000;
    display: block;
    border: 1px solid rgba(180, 180, 180, 0.90);
    overflow: auto;
    position: absolute;
}

Next, let's make the sub-event markers a little larger.

Markers are styled by the following rule-set in timespanevent.css:

.stx-marker.trade .stx-visual {
    background: #C950d7;
    width: 5px;
    height: 5px;
}

Note: For information on how CSS selectors relate to the structure of sub-event marker DOM elements and their class attributes, see CSS in the "Customization" section of the Creating a Data Source tutorial.

Customizing the styles in timespanevent.css is a little more complicated than the simple CSS override we just did for chartiq.css because timespanevent.css is loaded programmatically when CIQ.TimeSpanEventPanel is instantiated.

The timespanevent.css style sheet is appended as the last child of the head element of the HelloWorldComponent HTML document. As a result, the style sheet succeeds hello-world.component.scss and chartiq-base-styles.scss in the CSS cascade. But we can work around that.

We'll change the marker width and height settings by programmatically adding a style element that succeeds the timespanevent.css style element in the CSS cascade (that is, the new style element will be a later child of the head element of the HelloWorldComponent HTML document). We accomplish that by creating the style element after the instantiation of CIQ.TimeSpanEventPanel.

Add the following to the ngAfterViewInit function:

const el = document.createElement("style");
el.setAttribute("type", "text/css");
el.innerText = ".stx-marker.trade .stx-visual {"
    + "width: 8px;"
    + "height: 8px;"
    + "}";
document.head.appendChild(el);

Place the code after the instantation of TimeSpanEventPanel, for example:

new CIQ["TimeSpanEventPanel"]({
    stx: stx,
    showTooltip: true,
    infoPanel: {
        spanEvent: "main",
        durationEvent: "main",
        singleEvent: "main"
    }
});

const el = document.createElement("style");
el.setAttribute("type", "text/css");
el.innerText = ".stx-marker.trade .stx-visual {"
    + "width: 8px;"
    + "height: 8px;"
    + "}";
document.head.appendChild(el);

Note: Changing the background color in this rule-set won't have any effect. The setting is overridden by the color we specified in the event data objects (see the bgColor property in the event object arrays in hello-world.component.ts). Remove the bgColor property from an event object, then modify the CSS. (See the Event data objects section of the Creating a Data Source tutorial for information on the bgColor property.)

Next, let's restyle the pop-up display text.

Open timespanevent.css (in the plugins/timespanevent folder of your library or the node_modules/chartiq/plugins/timespanevent folder of the project).

Copy the h4 heading rule-set to hello-world.component.scss:

.stx-performance-marker.stx-marker-expand h4 {
    display: block;
}

Change the font size of the heading:

.stx-performance-marker.stx-marker-expand h4 {
    font-size: 0.80rem;
}

Since the h4 style in timespanevent.css doesn't contain a font-size setting, our setting won't be overridden.

Finally, change the look of the pop-up display body text by creating a new rule-set in hello-world.component.scss:

.stx-performance-marker.stx-marker-expand p {
    font-variant: small-caps;
}

Here are the final contents of hello-world.component.scss:

@import '~chartiq/css/stx-chart.css'; // Chart API

// Customize the sub-event markers and pop-up displays.

// Sub-event marker pop-up displays.
.stx-performance-marker.stx-marker-expand {
    background: rgba(255, 255, 255, 0.90);
    max-width: 200px;
    max-height: 200px;
    padding: 10px;
    opacity: 1;
    color: #000;
    display: block;
    border: 1px solid rgba(180, 180, 180, 0.90);
    overflow: auto;
    position: absolute;
}

// Pop-up display heading text.
.stx-performance-marker.stx-marker-expand h4 {
    display: block;
    font-size: 0.80rem;
}

// Pop-up display body text.
.stx-performance-marker.stx-marker-expand p {
    font-variant: small-caps;
}

Here's the final verion of hello-world.component.ts:

import { Component, ViewChild, ElementRef, AfterViewInit, ViewEncapsulation } from '@angular/core';

import { CIQ } from 'chartiq/js/chartiq';
import "chartiq/js/advanced";
import "chartiq/plugins/timespanevent/timespanevent";

/**
 * The Hello World component creates a basic chart from a built-in static data source. The chart
 * does not have a user interface.
 */
@Component({
    selector: 'cq-hello-world',
    templateUrl: './hello-world.component.html',
    styleUrls: ['./hello-world.component.scss'],
    encapsulation: ViewEncapsulation.None
})
export class HelloWorldComponent implements AfterViewInit {
    @ViewChild('chartContainer', { static: true }) chartContainer: ElementRef;

    constructor() {}

    ngAfterViewInit() {
        const container = this.chartContainer.nativeElement;

        const stx = new CIQ.ChartEngine({ container });

        new CIQ["TimeSpanEventPanel"]({
            stx: stx,
            showTooltip: true,
            infoPanel: {
                spanEvent: "main",
                durationEvent: "main",
                singleEvent: "main"
            }
        });

        const el = document.createElement("style");
        el.setAttribute("type", "text/css");
        el.innerText = ".stx-marker.trade .stx-visual {"
            + "width: 8px;"
            + "height: 8px;"
            + "}";
        document.head.appendChild(el);

        stx.loadChart('SPY', {
            masterData: this.getMasterData(),
            periodicity: {
                period: 1,
                interval: 5,
                timeUnit: 'minute',
            },
        });

        stx["timeSpanEventPanel"].showTimeSpanEvent(this.getTseData("Filing"));
        stx["timeSpanEventPanel"].showTimeSpanEvent(this.getTseData("Business"));
        stx["timeSpanEventPanel"].showTimeSpanEvent(this.getTseData("Order"));

    }

    /**
     * Gets the data for a swim lane of time span events.
     *
     * @param eventType Specifies the type of time span event. Must match the `type` property of
     *      a swim lane data object.
     * @return A swim lane data object, which contains an array of time span events.
     */
    getTseData(eventType) {

        // Span events.
        const businessEvents = [
            {
                label: "Business",
                spanLabel: "Product Demo",
                startDate: "2020-04-01T09:30:00",
                endDate: "2020-04-01T11:00:00",
                bgColor: "#00f",
                headline: "New Product",
                story: "Presentation to media."
            },
            {
                label: "Business",
                spanLabel: "Board Meeting",
                startDate: "2020-04-01T12:00:00",
                endDate: "2020-04-01T16:00:00",
                bgColor: "#f90",
                textColor: "#000"
            },
        ];

        // Single events.
        const filingEvents = [
            {
                label: "Filing",
                startDate: "2020-04-01T11:30",
                markerShape: "square",
                bgColor: "#a09",
                headline: "SEC Filing",
                story: "10K"
            },
            {
                label: "Filing",
                startDate: "2020-04-01T14:35:00",
                markerShape: "square",
                bgColor: "#0a0",
                headline: "SEC Filing",
                story: "10Q"
            }
        ];

        // Duration events.
        const orderEvents = [
            {
                label: "Order",
                startDate: "2020-04-01T10:00",
                endDate: "2020-04-01T11:45",
                markerShape: "circle",
                category: "trade",
                subChildren: [
                    {
                        date: new Date("2020-04-01T10:10:00"),
                        price: 156.46,
                        headline: "Trade Execution",
                        story: "Price: 156.46"
                    },
                    {
                        date: new Date("2020-04-01T10:40:00"),
                        price: 156.50,
                        headline: "Trade Execution",
                        story: "Price: 156.50"
                    },
                    {
                        date: new Date("2020-04-01T11:20:00"),
                        price: 156.43,
                        headline: "Trade Execution",
                        story: "Price: 156.43"
                    },
                    {
                        date: new Date("2020-04-01T11:45:00"),
                        price: 156.54,
                        headline: "Trade Execution",
                        story: "Price: 156.54"
                    }
                ],
                headline: "Trade Start",
                story: new Date("2020-04-01T10:00"),
                bgColor: "#aa0"
            },
            {
                label: "Order",
                startDate: "2020-04-01T13:00",
                endDate: "2020-04-01T15:25",
                markerShape: "circle",
                category: "trade",
                subChildren: [
                    {
                        date: new Date("2020-04-01T13:50:00"),
                        price: 156.55,
                        headline: "Trade Execution",
                        story: "Price: 156.55"
                    },
                    {
                        date: new Date("2020-04-01T14:25:00"),
                        price: 156.45,
                        headline: "Trade Execution",
                        story: "Price: 156.45"
                    },
                    {
                        date: new Date("2020-04-01T15:25:00"),
                        price: 156.54,
                        headline: "Trade Execution",
                        story: "Price: 156.54"
                    }
                ],
                headline: "Trade Start",
                story: new Date("2020-04-01T10:40"),
                bgColor: "#0af",
                isActive: true
            }
        ];

        // Swim lane objects.

        const business = {
            type: "Business",
            events: businessEvents,
            spanType: "spanEvent"
        }

        const filing = {
            type: "Filing",
            events: filingEvents,
            spanType: "singleEvent"
        }

        const order = {
            type: "Order",
            events: orderEvents,
            spanType: "durationEvent"
        }

        switch (eventType.toLowerCase()) {
            case "business":
                return business;
            case "filing":
                return filing;
            case "order":
                return order;
        }

    }

    getMasterData() {
        const masterData = [
            {Date:"20200331144000000",Open:156.64,High:156.66,Low:156.57,Close:156.59,Volume:932912},
            {Date:"20200331145000000",Open:156.58,High:156.62,Low:156.57,Close:156.61,Volume:700952},
            {Date:"20200331145500000",Open:156.59,High:156.60,Low:156.55,Close:156.58,Volume:1084428},
            {Date:"20200331150000000",Open:156.57,High:156.58,Low:156.53,Close:156.55,Volume:916684},
            {Date:"20200331150500000",Open:156.54,High:156.57,Low:156.52,Close:156.55,Volume:1360390},
            {Date:"20200331151000000",Open:156.56,High:156.60,Low:156.54,Close:156.58,Volume:2037170},
            {Date:"20200331151500000",Open:156.55,High:156.62,Low:156.54,Close:156.60,Volume:4280833},
            {Date:"20200331152000000",Open:156.61,High:156.62,Low:156.54,Close:156.57,Volume:3348274},
            {Date:"20200331152500000",Open:156.59,High:156.62,Low:156.52,Close:156.54,Volume:932912},
            {Date:"20200331153000000",Open:156.56,High:156.57,Low:156.50,Close:156.52,Volume:700952},
            {Date:"20200331153500000",Open:156.51,High:156.56,Low:156.50,Close:156.54,Volume:1084428},
            {Date:"20200331154000000",Open:156.52,High:156.56,Low:156.51,Close:156.55,Volume:916684},
            {Date:"20200331154500000",Open:156.56,High:156.57,Low:156.50,Close:156.53,Volume:1360390},
            {Date:"20200331155000000",Open:156.52,High:156.53,Low:156.49,Close:156.50,Volume:2037170},
            {Date:"20200331155500000",Open:156.51,High:156.52,Low:156.46,Close:156.48,Volume:4280833},
            {Date:"20200331160000000",Open:156.49,High:156.48,Low:156.44,Close:156.47,Volume:3348274},
            {Date:"20200401093000000",Open:156.41,High:156.48,Low:156.39,Close:156.46,Volume:1869466},
            {Date:"20200401093500000",Open:156.44,High:156.53,Low:156.40,Close:156.49,Volume:2937883},
            {Date:"20200401094000000",Open:156.48,High:156.54,Low:156.37,Close:156.43,Volume:2277682},
            {Date:"20200401094500000",Open:156.47,High:156.55,Low:156.45,Close:156.51,Volume:1714687},
            {Date:"20200401095000000",Open:156.49,High:156.58,Low:156.48,Close:156.54,Volume:1902583},
            {Date:"20200401095500000",Open:156.54,High:156.59,Low:156.50,Close:156.56,Volume:1325148},
            {Date:"20200401100000000",Open:156.56,High:156.60,Low:156.50,Close:156.53,Volume:2005588},
            {Date:"20200401100500000",Open:156.52,High:156.54,Low:156.42,Close:156.43,Volume:1277880},
            {Date:"20200401101000000",Open:156.44,High:156.46,Low:156.36,Close:156.37,Volume:1158301},
            {Date:"20200401101500000",Open:156.38,High:156.39,Low:156.26,Close:156.28,Volume:1987415},
            {Date:"20200401102000000",Open:156.26,High:156.33,Low:156.22,Close:156.32,Volume:1512742},
            {Date:"20200401102500000",Open:156.31,High:156.40,Low:156.31,Close:156.39,Volume:871592},
            {Date:"20200401103000000",Open:156.38,High:156.43,Low:156.35,Close:156.40,Volume:1132109},
            {Date:"20200401103500000",Open:156.40,High:156.44,Low:156.37,Close:156.41,Volume:725521},
            {Date:"20200401104000000",Open:156.41,High:156.50,Low:156.41,Close:156.48,Volume:704072},
            {Date:"20200401104500000",Open:156.48,High:156.50,Low:156.42,Close:156.46,Volume:844084},
            {Date:"20200401105000000",Open:156.47,High:156.47,Low:156.42,Close:156.45,Volume:392122},
            {Date:"20200401105500000",Open:156.45,High:156.47,Low:156.38,Close:156.41,Volume:544729},
            {Date:"20200401110000000",Open:156.43,High:156.47,Low:156.41,Close:156.44,Volume:660383},
            {Date:"20200401110500000",Open:156.43,High:156.47,Low:156.40,Close:156.41,Volume:640177},
            {Date:"20200401111000000",Open:156.41,High:156.44,Low:156.35,Close:156.39,Volume:845668},
            {Date:"20200401111500000",Open:156.38,High:156.41,Low:156.37,Close:156.39,Volume:503347},
            {Date:"20200401112000000",Open:156.39,High:156.43,Low:156.38,Close:156.41,Volume:360929},
            {Date:"20200401112500000",Open:156.40,High:156.42,Low:156.37,Close:156.38,Volume:749554},
            {Date:"20200401113000000",Open:156.39,High:156.44,Low:156.38,Close:156.42,Volume:723857},
            {Date:"20200401113500000",Open:156.40,High:156.45,Low:156.40,Close:156.44,Volume:455561},
            {Date:"20200401114000000",Open:156.43,High:156.48,Low:156.42,Close:156.45,Volume:670704},
            {Date:"20200401114500000",Open:156.44,High:156.54,Low:156.44,Close:156.50,Volume:827725},
            {Date:"20200401115000000",Open:156.51,High:156.55,Low:156.48,Close:156.53,Volume:828780},
            {Date:"20200401115500000",Open:156.53,High:156.55,Low:156.48,Close:156.49,Volume:687357},
            {Date:"20200401120000000",Open:156.48,High:156.52,Low:156.48,Close:156.51,Volume:343617},
            {Date:"20200401120500000",Open:156.50,High:156.58,Low:156.50,Close:156.57,Volume:444181},
            {Date:"20200401121000000",Open:156.57,High:156.61,Low:156.56,Close:156.57,Volume:932850},
            {Date:"20200401121500000",Open:156.58,High:156.63,Low:156.56,Close:156.61,Volume:622879},
            {Date:"20200401122000000",Open:156.61,High:156.64,Low:156.54,Close:156.56,Volume:417197},
            {Date:"20200401122500000",Open:156.57,High:156.60,Low:156.54,Close:156.56,Volume:524792},
            {Date:"20200401123000000",Open:156.57,High:156.63,Low:156.56,Close:156.63,Volume:547832},
            {Date:"20200401123500000",Open:156.63,High:156.69,Low:156.62,Close:156.65,Volume:1033940},
            {Date:"20200401124000000",Open:156.65,High:156.66,Low:156.59,Close:156.60,Volume:666020},
            {Date:"20200401124500000",Open:156.60,High:156.63,Low:156.52,Close:156.54,Volume:886571},
            {Date:"20200401125000000",Open:156.54,High:156.59,Low:156.53,Close:156.57,Volume:409824},
            {Date:"20200401125500000",Open:156.57,High:156.57,Low:156.52,Close:156.53,Volume:490971},
            {Date:"20200401130000000",Open:156.53,High:156.62,Low:156.53,Close:156.62,Volume:618202},
            {Date:"20200401130500000",Open:156.62,High:156.63,Low:156.56,Close:156.56,Volume:232977},
            {Date:"20200401131000000",Open:156.56,High:156.58,Low:156.52,Close:156.52,Volume:569834},
            {Date:"20200401131500000",Open:156.53,High:156.55,Low:156.50,Close:156.54,Volume:526717},
            {Date:"20200401132000000",Open:156.54,High:156.54,Low:156.48,Close:156.52,Volume:587983},
            {Date:"20200401132500000",Open:156.52,High:156.52,Low:156.46,Close:156.46,Volume:683988},
            {Date:"20200401133000000",Open:156.46,High:156.48,Low:156.44,Close:156.44,Volume:505235},
            {Date:"20200401133500000",Open:156.45,High:156.46,Low:156.41,Close:156.44,Volume:760274},
            {Date:"20200401134000000",Open:156.45,High:156.45,Low:156.41,Close:156.42,Volume:428196},
            {Date:"20200401134500000",Open:156.43,High:156.49,Low:156.42,Close:156.49,Volume:372145},
            {Date:"20200401135000000",Open:156.49,High:156.55,Low:156.42,Close:156.42,Volume:493463},
            {Date:"20200401135500000",Open:156.42,High:156.46,Low:156.37,Close:156.38,Volume:763911},
            {Date:"20200401140000000",Open:156.38,High:156.44,Low:156.38,Close:156.43,Volume:478714},
            {Date:"20200401140500000",Open:156.43,High:156.48,Low:156.40,Close:156.47,Volume:347221},
            {Date:"20200401141000000",Open:156.46,High:156.48,Low:156.44,Close:156.45,Volume:527388},
            {Date:"20200401141500000",Open:156.46,High:156.47,Low:156.39,Close:156.46,Volume:1254489},
            {Date:"20200401142000000",Open:156.47,High:156.52,Low:156.43,Close:156.50,Volume:588877},
            {Date:"20200401142500000",Open:156.49,High:156.50,Low:156.45,Close:156.46,Volume:391738},
            {Date:"20200401143000000",Open:156.46,High:156.50,Low:156.43,Close:156.46,Volume:835468},
            {Date:"20200401143500000",Open:156.46,High:156.51,Low:156.45,Close:156.48,Volume:465308},
            {Date:"20200401144000000",Open:156.48,High:156.50,Low:156.47,Close:156.49,Volume:389872},
            {Date:"20200401144500000",Open:156.48,High:156.53,Low:156.48,Close:156.50,Volume:530820},
            {Date:"20200401145000000",Open:156.50,High:156.53,Low:156.48,Close:156.53,Volume:554269},
            {Date:"20200401145500000",Open:156.53,High:156.57,Low:156.52,Close:156.56,Volume:622473},
            {Date:"20200401150000000",Open:156.57,High:156.59,Low:156.53,Close:156.59,Volume:593592},
            {Date:"20200401150500000",Open:156.59,High:156.61,Low:156.56,Close:156.58,Volume:1089712},
            {Date:"20200401151000000",Open:156.59,High:156.59,Low:156.55,Close:156.57,Volume:634702},
            {Date:"20200401151500000",Open:156.57,High:156.64,Low:156.57,Close:156.60,Volume:1206417},
            {Date:"20200401152000000",Open:156.60,High:156.61,Low:156.58,Close:156.60,Volume:641636},
            {Date:"20200401152500000",Open:156.59,High:156.60,Low:156.54,Close:156.55,Volume:873698},
            {Date:"20200401153000000",Open:156.55,High:156.64,Low:156.55,Close:156.59,Volume:1318720},
            {Date:"20200401153500000",Open:156.60,High:156.68,Low:156.59,Close:156.68,Volume:1520610},
            {Date:"20200401154000000",Open:156.68,High:156.74,Low:156.67,Close:156.74,Volume:1678678},
            {Date:"20200401154500000",Open:156.74,High:156.80,Low:156.73,Close:156.76,Volume:2854531},
            {Date:"20200401155000000",Open:156.75,High:156.79,Low:156.71,Close:156.72,Volume:2984534},
            {Date:"20200401155500000",Open:156.71,High:156.75,Low:156.63,Close:156.73,Volume:7105595},
            {Date:"20200401160000000",Open:156.73,High:156.78,Low:156.71,Close:156.77,Volume:3863507}
        ];
        return masterData;
    }
}

And here are our customizations:

Basic chart with time span events and customized sub-event markers and pop-up displays Figure. Basic chart with time span events and customized sub-event markers and pop-up displays.

Conclusion

Time Span Events are a great addition to any Angular charting application.

Save your Angular project because we'll use it in the next tutorial to create an example of time span events controlled from the user interface.


Next steps
